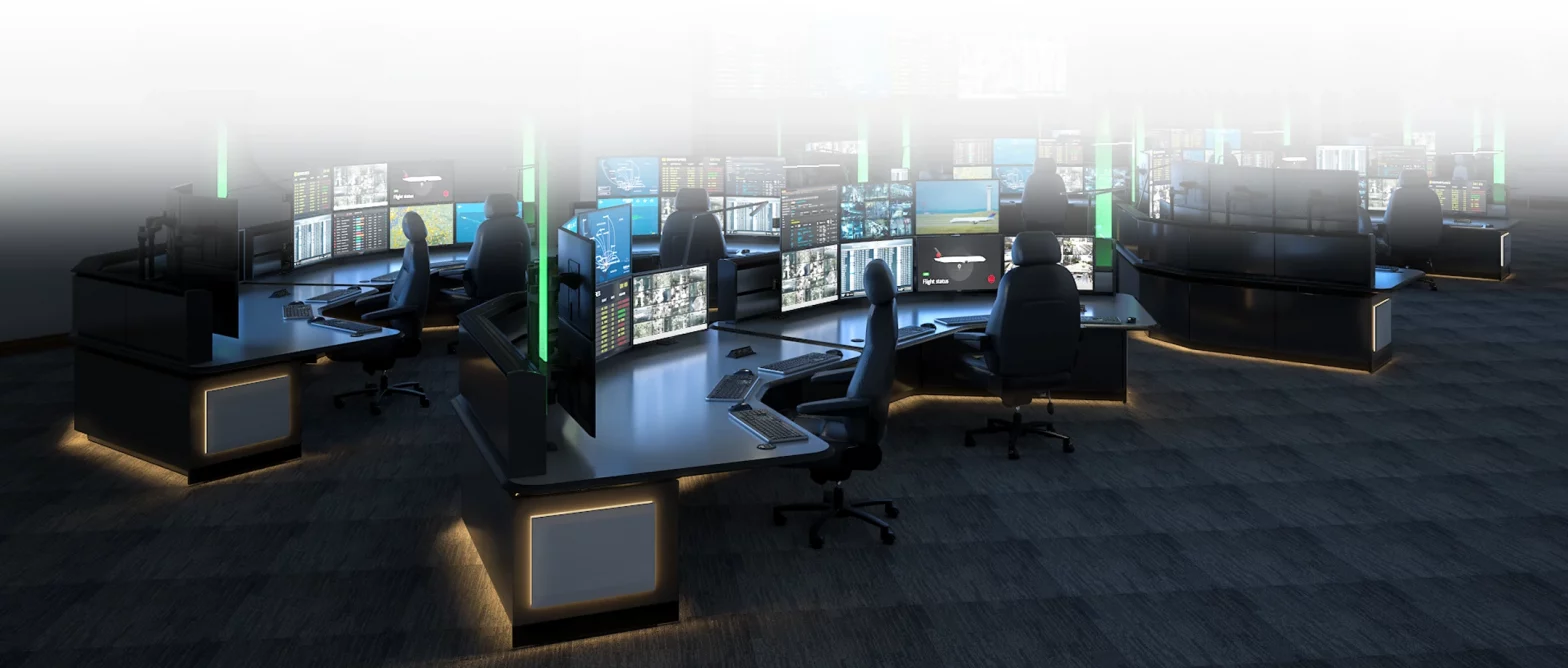

Tailored Control Room Consoles for Command Centers
Ergonomic, Modular, and Operator-Centric Solutions

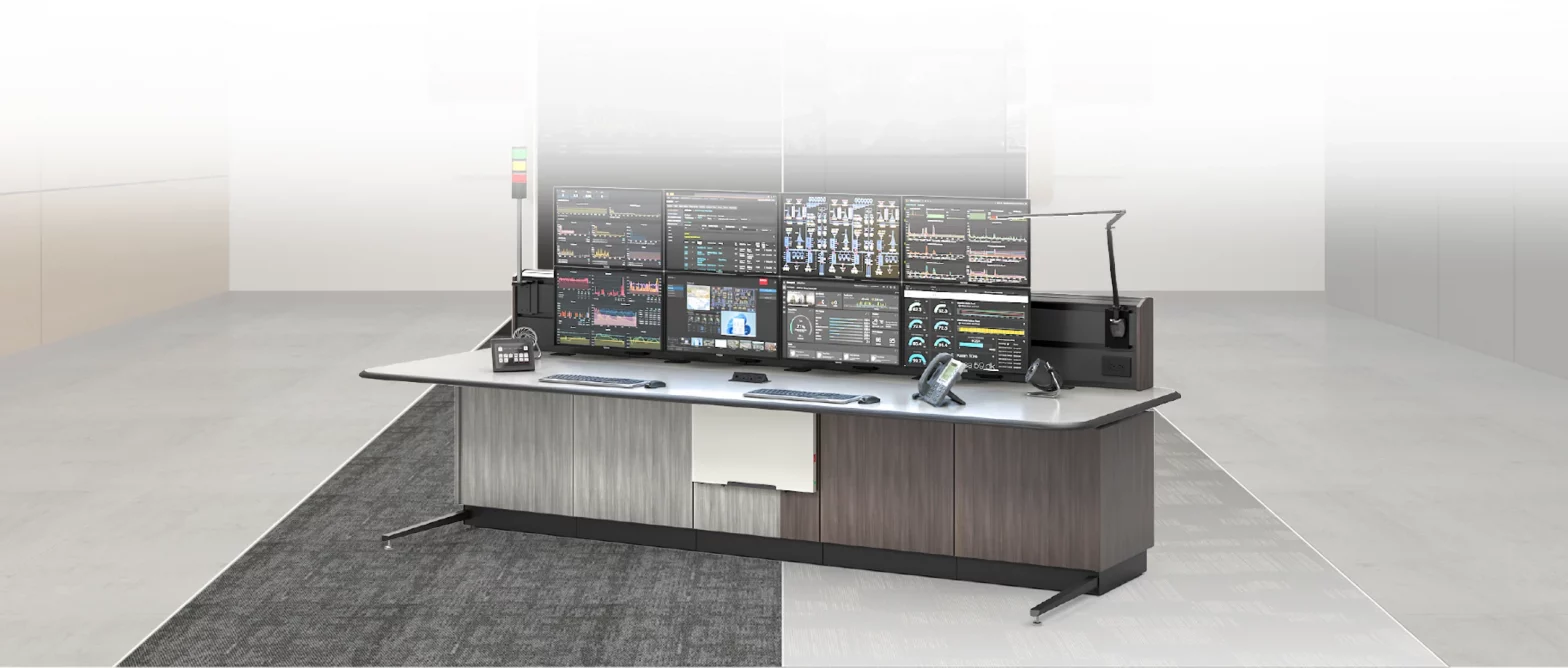

Custom Control Room Consoles
Our custom control room consoles are designed and built from the ground up to cater to the strict requirements of your operations. This means that they can vary widely in size, shape, functionality, and features. To accommodate such wide range of scenarios our consoles are designed with a modular structure to give maximum flexibility all while providing a robust backbone to sustain all your operational equipment.
In the following sections, we’ll delve into the most crucial parts of our consoles to gain a better understanding of how each component contributes to enhancing your command center’s needs. Additionally, we’ll provide instructions on how to operate our innovative personal environment unit and other ergonomic accessories and share Tresco’s approach for designing and implementing command center console design to fit any control room ranging from electrical utilities, and power generation command centers, to mission critical environments aimed at process control operations like Oil and Gas or industrial manufacturing facilities.
The following links let you jump right into any section that peaks your interest:
Understanding your Console
Let’s analyze the various components of our console to understand their purpose and how they integrate. This will help you use the console’s features more effectively, customize your control room operations, and improve operator efficiency.
What are the components of our control room consoles?
Backwall – Sturdy and customizable frames mounted atop the control room console worksurface, provide anchoring points for monitor arms and facilitate cable routing to maintain an uncluttered ergonomic workstation.
Cable Tray – An integral part of the console’s cable management system, providing a sturdy frame for installers to anchor and route necessary cables through the control center console.
Cantilevers/work surface support arms – The crucial link between custom console bay arrangements and the work surface, delivering vital support for Tresco’s robust, control room furniture.
Control box (CBD6S) – The core of your console’s height adjustment system, serving as both the brain and power supply for your sit-stand workstation.
Gables /End caps – Finishing elements at either side of the control console, designed to shield the frame and back wall, enhancing the durability and aesthetic appeal of the workstation.
Kick Plates – Protective metal plates safeguarding the control room console from constant contact with the operator’s feet. Ensuring longevity in 24/7 mission-critical environments.
Lift columns – Electro-Mechanical Lifting Columns that allow the workstation to be raised to the desired height promoting operator comfort during long shifts.
Monitor arms – Fully adjustable and customizable monitor mounts catering to your operational needs and screen size requirements for optimized situational awareness.
Sit-stand control controls – Controls designed to allow the user to adjust the height of the lifting columns, set memory and display height, and error codes in ergonomic workstations.
Sliding equipment trays – 12-gauge steel plates with robust sliding mechanisms, facilitating easy access to electrical or mechanical equipment mounted inside the control room console.
Sub Panel – When the console is in the standing position These panels enclose the console to provide a clean finish so you do not see cables and additional equipment.
Ventilation fans – Console ventilation fans are designed to push out hot air from the frame to maintain the optimal operating temperature. They are engineered to maximize airflow, reduce noise, and increase the lifespan of the internal components of the command center console.
Vertical Cable Management – Flexible and adjustable cable management system, ensuring maximum mobility during workstation height adjustments.
Worksurface – The primary operator contact surface, often single but adaptable to dual configurations for specific operational needs.
Wedge Sections – Connecting sections that allow Tresco to make unique console shapes delivering flexible solutions for custom control room environments.
Ergonomic Features of our Control Room Consoles
If your console is equipped with a personal environment unit, then you have access to the highest level of ergonomic comfort at the tip of your fingers. Let’s explore how to operate the system in the following video. We left out a couple of helpful links if you want to jump to specific features of the Tresco Personal Environment System.
Tresco Project Outline
At Tresco, we pride ourselves on our ability to properly elicit the requirements from your project stakeholders to build the foundation of your control room console’s transformation.
Our team of control room experts have the experience and knowledge to ask relevant questions to ensure your control room transforms into a functional and productive space for your operators.
The following are the key steps within out process:
- Project Initiation: Cadence, Timelines & Requirements
- Solution Design
- Approval & Sign-off
- Manufacturing
- Factory Acceptance Testing
- Logistics, Delivery & Install
- Project Approval & Closure
- Post-Install Care & Maintenance
Gain valuable insight into our process through the Tresco Project Outline whitepaper. This document showcases how we identify and address operational needs by developing strategic console solutions, and ultimately bringing them to life. Our consoles are built from the ground up to optimize your internal monitoring processes, helping you to achieve greater efficiency and mission-critical success.
